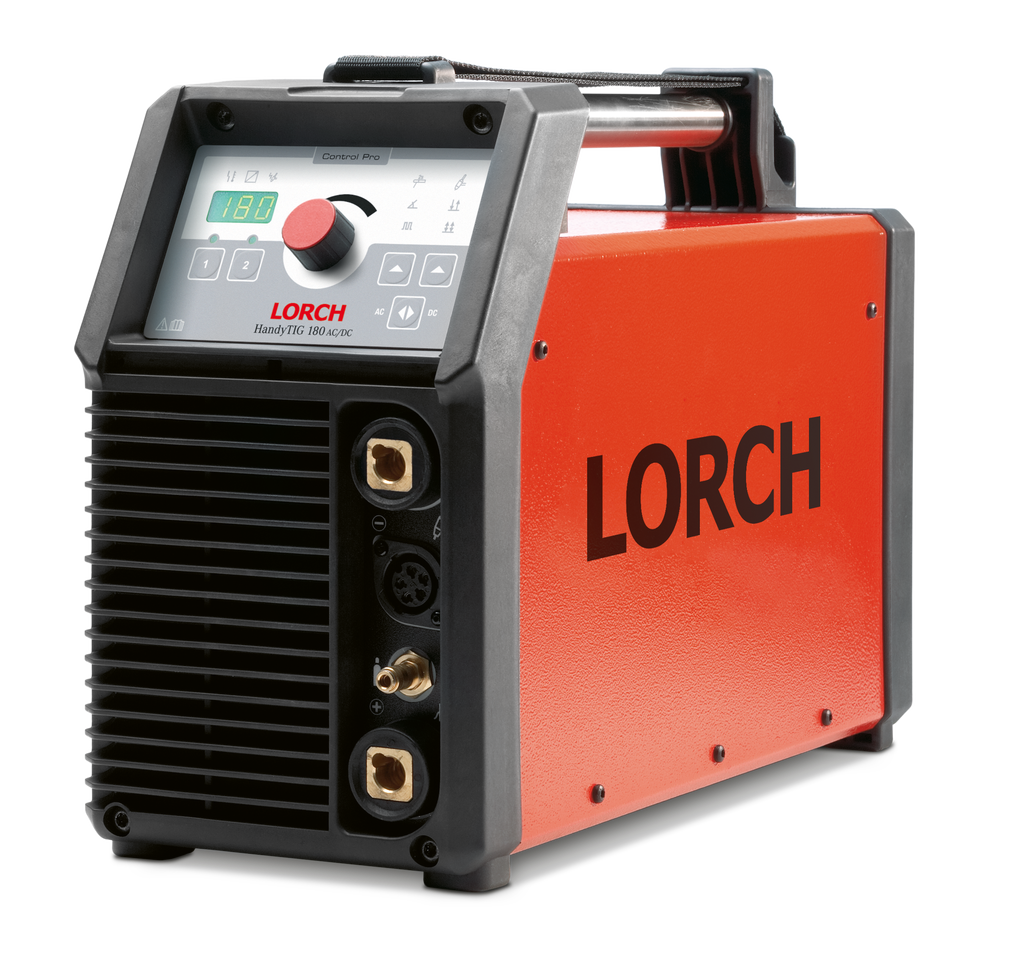

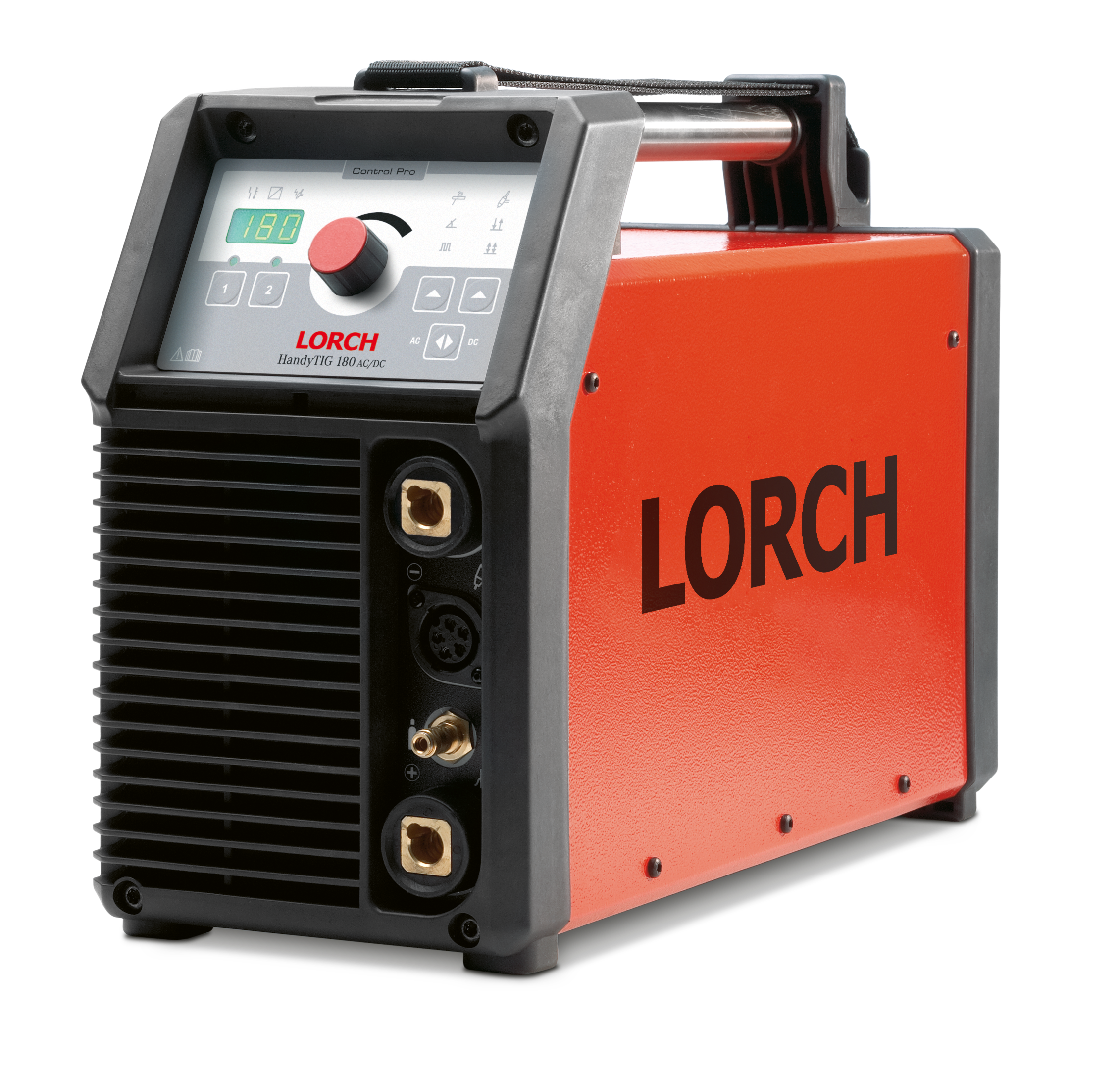

Lorch HandyTIG 180 AC/DC
Lorch HandyTIG 180 AC/DC
Limited time offer- Shop £100 or more to get 10% OFF
Fast shipping at your door step
SSL encrypted secure payments
High standards of quality checks
Reduced noise at stable arc.
AC mode optimises the current form for greatest stability, outstanding cleaning effect of the aluminium oxide skin and reduced noise.
Durability and resilience.
The standard protective cover of the control panel and the integrated dust filter warrant resistance and durability even in rough installation conditions. The special crash protection keeps the housing safe even at falls from a height of up to 60 cm.
Job function.
The job function stores settings for 2 TIG and 2 electrode welds to be retrieved easily at need. Perfect for repetitive work.
MMA welding.
Lorch welding units of the HandyTIG 180 AC/DC can be used for MMA welding as well. The arc-force control comes ensures arc stability and perfect material transition. The electrode will not stick or anneal due to the anti-stick system.
Country-specific product variants.
Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.
Features:
- "3 steps and weld” operating concept
- Stepless current adjustment
- Amperometric digital display
- Job memory for 2 TIG and MMA welding tasks each
Features:
| TIG welding | |
|---|---|
| Welding range 1~ 230 V: [A] | 5 - 180 |
| Voltage range: [V] | 10.1 - 17.2 |
| TIG Duty cycle DC | 400 V |
|---|---|
| Duty cycle DC 100% (40°c): [A] | 130 |
| Duty cycle DC 60% (40°c): [A] | 150 |
| Duty cycle DC at max. current (40°c): [%] | 30 |
| Electrode welding | |
|---|---|
| Welding range 230 V: [A] | 5 - 150 |
| Voltage range: [V] | 20.4 - 26 |
| Weldable electrodes: [Ø in mm] | 1.5 - 4 |
| Electrode duty cycle | |
|---|---|
| Duty cycle 100% (40°c): [A] | 130 |
| Duty cycle 60%: [A] | 150 |
| Duty cycle at max. current (40°c): [%] | 35 |
| Process-independent data | |
|---|---|
| Open circuit voltage: [V] | 63 - 84 |
| Mains | 230 V |
|---|---|
| Mains voltage 1~ (50/60 Hz): [V] | 230 |
| Mains fuse 1~ (50/60 Hz): [A] | 16 |
| Positive mains tolerance 1~ (50/60 Hz): [%] | 15 |
| Negative mains tolerance 1~ (50/60 Hz): [%] | 25 |
| Mains plug | |
|---|---|
| Mains plug: | Schuko |
| Standards and approvals | |
|---|---|
| Protection class: | IP23S |
| Insulation class: | F |
| Norm/Standard: | EN 60974-01 |
| Designation/Certification: | CE, S |
| Cooling type | |
|---|---|
| Cooling type: | Gas-cooled |
| Dimensions | length x width x height |
|---|---|
| Dimensions (LxWxH) [mm] | 480 × 185 × 326 |
| Weights | |
|---|---|
| Weight: [kg] | 13.3 |
