Resilient.

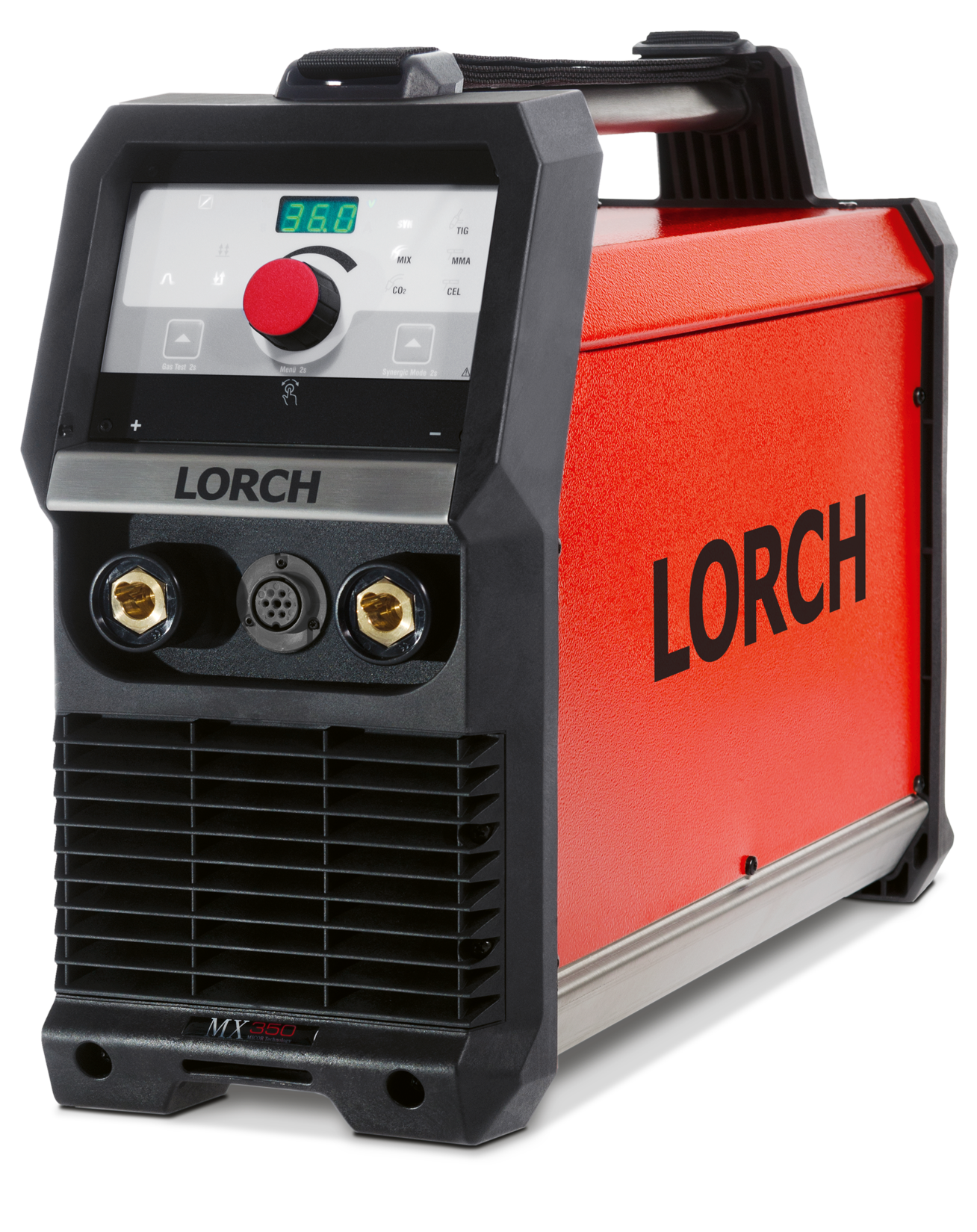

The Lorch MX 350 is optimally equipped for mobile outdoor use with its robust and weatherproof housing with IP34 and a drop resistance of up to 60 cm height.
Extra performance with the MicorBoost.
Significantly higher voltage reserves can be activated when external interferences drop the current, leading to perfect MMA welding.
Synergy mode.
With optional MIG-MAG synergy mode for excellent MIG-MAG welding properties with mixed gas and CO? alike.
Multi-process and full flexibility thanks to MF-07 wire feeder.
The MX 350 is an excellent tool for mobile use as well when combined with the separate wire feeder MF-07. The MF-07 can cope with all kinds of sheet metal and medium to heavy steel work.
The case is designed for use with K 300 wire rolls to keep you up to speed when welding. It is also TIG-, MMA-, and CEL-capable, permitting adjustment to various tasks at need.
Country-specific product variants.
Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.
Features:
- "3 steps and weld” operating concept
- Simple one-button operation
- Amperometric digital display
- Electrode preselection (basic, rutile, and CEL) for optimal welding parameters
- Hot start in submenu
Features:
| MIG-MAG welding | |
|---|---|
| Welding range 3~ 400 V: [A] | 10 - 350 |
| Voltage range: [V] | 14.5 - 31.5 |
| Weldable Wires Steel: [Ø in mm] | 0.8 - 1.2 |
| Weldable wires aluminum: [Ø in mm] | 1 - 1.2 |
| Weldable wires CuSi: [Ø in mm] | 0.8 - 1.2 |
| Voltage setting | |
|---|---|
| Voltage setting: | Continuo |
| MIG-MAG duty cycle | |
|---|---|
| Duty cycle 100% (40°c): [A] | 230 |
| Duty cycle 60% (40°c): [A] | 280 |
| Duty cycle at max. current (40°c): [%] | 35 |
| TIG welding | |
|---|---|
| Welding range 3~ 400 V: [A] | 10 - 350 |
| Voltage range: [V] | 10.4 - 24 |
| TIG Duty cycle DC | 400 V |
|---|---|
| Duty cycle DC 100% (40°c): [A] | 250 |
| Duty cycle DC 60% (40°c): [A] | 300 |
| Duty cycle DC at max. current (40°c): [%] | 40 |
| Electrode welding | |
|---|---|
| Welding range 400 V: [A] | 10 - 350 |
| Voltage range: [V] | 20.4 - 34 |
| Weldable electrodes: [Ø in mm] | 1.5 - 8 |
| Electrode duty cycle | |
|---|---|
| Duty cycle 100% (40°c): [A] | 230 |
| Duty cycle 60%: [A] | 280 |
| Duty cycle at max. current (40°c): [%] | 35 |
| Process-independent data | |
|---|---|
| Open circuit voltage: [V] | 78 - 81 |
| Mains | 400 V |
|---|---|
| Mains voltage 3~ (50/60 Hz): [V] | 400 |
| Mains fuse 3~ (50/60 Hz): [A] | 25 |
| Positive mains tolerance 3~ (50/60 Hz): [%] | 25 |
| Negative mains tolerance 3~ (50/60 Hz): [%] | 40 |
| Mains plug | |
|---|---|
| Mains plug: | CEE 32 |
| Standards and approvals |
|---|
